How to calculate the area required for off grid solar power system? When purchasing a off grid solar power system, many customers have this question: How much area do I need to reserve for off grid solar power system?

How to calculate the area required for off grid solar power system?

  • Xindun
  • December 03, 2021

how to calculate off grid solar system ? When purchasing a off grid solar power system, many customers have this question: How much area do I need to reserve for off grid solar power system?

You will get clear reply after reading this article.There are two conditions for the placement area of solar panels:

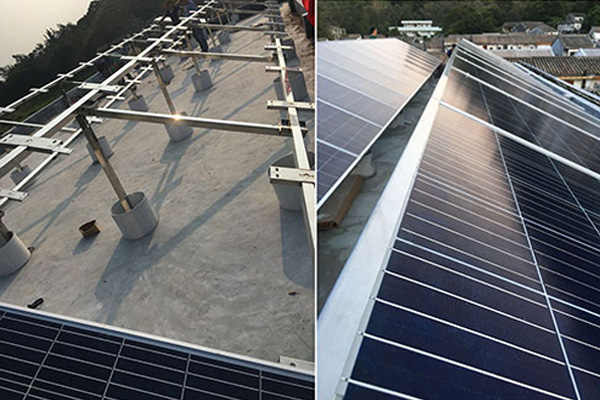

1. Solar panels are installed on the roof


how to calculate solar power system


The installation area of one piece solar panel is estimated to be 2.1-2.2. (The gap space between the solar panel and the solar panel is reserved.)

The solar panel installation area calculation method of the whole solar power system: the number of solar panels x 2.1/2.2.

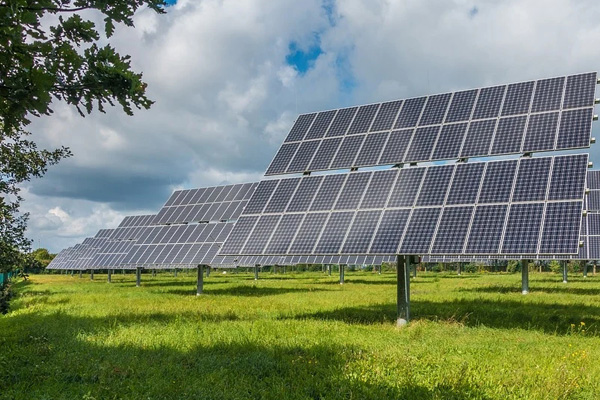

2. Solar panels are installed on the ground


how to calculate off grid solar system


The installation area of a solar panel on the ground needs to be calculated as 2.5 .(Because the solar panels are installed at a certain angle, in order to prevent the front solar panels from blocking the rear solar panels and cause the hot spot effect. Therefore, the calculated area of a single solar panel is 2.5)

The calculation method of the solar panel installation area of the entire solar power system: the number of solar panels × 2.5 .

The solar inverter, solar controller and battery are recommended to be placed in a ventilated and dry room. (It is recommended to place it in a room close to the solar panel to reduce line loss)


For example:

5KW home solar power system: uses 16pcs 350W solar panels and 8pcs 12v200ah batteries.

.Solar panel installed on the roof: 16pcs x 2.2㎡=35.2㎡, which is 36㎡

.Solar panel installed on the ground: 16pcs x 2.5=40, which is 40

The solar inverter and battery need to be placed in a room of about 5-10m³


How to calculate the area required for off grid solar power system


If you still have questions about off grid solar power system, please contact us and we will calculate it for you.
