Can off grid hybrid inverter be set to schedule charging and discharging? The answer is yes. Today, there are a wide variety of inverters on the market, and their functions are becoming increasingly diverse. Many off grid hybrid inverter produced by inverter manufacturers, such as Xindun Power off grid hybrid inverter manufacturer, feature scheduled charging and discharging functions.
What is the purpose of the scheduled charging and discharging function on off grid hybrid solar inverter? This function plays multiple important roles in practical applications. The core role of the scheduled charging and discharging function on off grid hybrid solar inverter lies in economic efficiency. It can effectively take advantage of the differences in peak and off peak electricity prices in the local electricity market, storing energy during low price periods and releasing it during peak price periods, significantly reducing users' electricity costs. Furthermore, this function protects battery life, prevents overcharging and over discharging, reduces frequent charging and discharging, and reduces the number of battery cycles consumed. Furthermore, this function optimizes energy efficiency, avoiding wasteful solar power generation and reducing inefficient utility power consumption, thereby maximizing energy utilization.
For example, the Xindun HP PLUS+ off grid hybrid inverter (10KW/12KW) features a time based charging and discharging function, with three configurable time periods. Users can set these three different charging and discharging periods based on local peak and off peak electricity prices, effectively allocating power between utility power, solar power, and batteries. When utility prices are high, battery inverter can be used to supply power to loads, reducing electricity costs. When utility prices are low, utility power can be used to power and charge loads, maximizing savings.
Users can enable or disable the timed charging and discharging function in the Xindun HP PLUS+ off grid hybrid solar inverter (10KW/12KW) settings. However, before first use, you must first set the local time and date, and then set the time period based on local peak and off peak electricity prices.
Off grid hybrid solar inverter from various manufacturers are available on the market, and this feature varies from inverter to inverter. The following uses the Xindun HP PLUS+ off grid hybrid solar inverter (10KW/12KW) as an example for an introduction:
Time based AC charging/loading: When this function is enabled, three user defined time periods are available (00:00-23:59) for charging and loading. During these time periods, if there is solar power output, the inverter will prioritize solar power. If there is no solar power output or if the solar power is insufficient, the AC power will be used as a supplement.
Time based battery discharge: When this function is enabled, three user defined time periods are available (00:00-23:59) for battery discharge. During these time periods, the inverter will prioritize battery power for loading. If the battery power is low, the inverter will automatically switch to AC power to ensure stable load operation. The Xindun HP PLUS+ off grid hybrid solar inverter (10KW/12KW) features three operating modes: hybrid, off grid, and on grid. It allows for the synergistic and complementary operation of solar, mains, and batteries. The scheduled charge and discharge function maximizes the value of these three modes.
In off grid mode, only the scheduled discharge function is enabled to cover peak loads, preventing battery discharge during the day and power loss at night. If the scheduled charge function is disabled, solar power is used to charge the battery first.
In on grid mode, scheduled charging is enabled during off peak hours and scheduled discharge is enabled during peak hours, allowing users to store electricity during off peak hours and sell it during peak hours, profiting from the peak off peak price difference.
In hybrid mode, scheduled charging is enabled, using mains power during off peak hours, charging the battery with solar power, and supplying the battery with power during peak hours, preventing solar power from feeding back into the utility power (preventing backflow). Here are two Xindun off grid hybrid solar inverter that support scheduled charging and discharging:

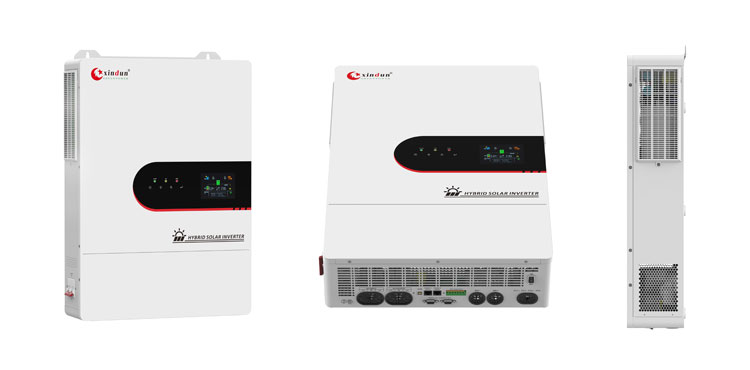

HP PLUS+ Off Grid Hybrid Inverter 10KW-12KW
1. Pure sine wave output provides more stable power, protecting sensitive equipment such as computers, refrigerators, and air conditioners from damage caused by voltage fluctuations.
2. High frequency, high efficiency design delivers higher conversion efficiency and lower no load losses, helping users reduce energy waste and lower long term operating costs.
3. Built in MPPT solar controller (up to 500V input) fully utilizes solar resources and improves power generation efficiency, even in low light conditions.
4. Hybrid solar and utility power supply ensures uninterrupted power to critical loads while flexibly utilizing both utility and solar power to improve energy efficiency.
5. Supports on grid power feeding, allowing excess power to be fed back into the grid, helping users save on electricity bills or earn additional revenue.
6. Smart panel settings allow users to easily adjust operating mode, charging current, voltage, and output frequency to flexibly meet different application needs. 7. Supports battery-free operation, allowing it to directly power loads even without batteries, reducing initial investment costs.
8. Powerful scalability (up to 6 units in parallel) meets the power supply needs of homes, businesses, and even industrial facilities. Supports single phase and three phase parallel operation, making system expansion easy.
9. Time of day charging and discharging allows for optimal utilization of peak and off peak electricity prices, reducing electricity costs and making it particularly suitable for markets with significant price differences.
10. Comprehensive protection features, including built in overload, overtemperature, and short circuit protection, ensure long term safe and stable operation.
11. Lithium battery compatibility, supports BMS communication and lithium battery activation, extending battery life and enabling smarter system operation.
12. Equipped with multiple communication functions (USB/RS485/dry contact/mobile app (Wi-Fi monitoring or GPRS monitoring) (optional), it facilitates remote monitoring and management.
HU Off Grid Hybrid Solar Inverter 10KW/12KW
1. Supports split phase input and output or single phase input and output modes, compatible with mainstream grid standards in the Americas.
2. Utilizing a high frequency structure, it offers high operating efficiency and minimal heat loss, significantly reducing overall system energy consumption. This helps customers reduce power losses and improve overall solar system profitability over the long term.
3. Equipped with a built in high performance MPPT solar controller, it supports a solar input voltage of up to 500V and offers high tracking accuracy, enabling rapid detection of the maximum power point even in cloudy or low light conditions, maximizing solar power generation.
4. Supports hybrid power supply from both solar and mains electricity, enabling simultaneous load power supply and battery charging. This effectively ensures power continuity and enhances system reliability in areas with unstable power grids.
5. It can also power loads without batteries, making it suitable for phased construction or cost constrained projects, enabling more flexible system deployment. 6. Supports parallel operation of up to six inverters, either single phase or three phase, allowing for easy capacity expansion to meet growing power demands from residential applications to small and medium sized commercial applications.
8. Built in time based charge and discharge management allows users to flexibly set charging and discharging schedules based on peak and off peak electricity pricing, significantly reducing electricity costs by charging during low prices and discharging during high prices.
9.Comprehensive multiple protection features, including overload, overtemperature, and short circuit protection, ensure long term stable operation and effectively reduce maintenance and after sales risks.
10. Supports automatic lithium battery activation and BMS communication for real time battery status monitoring, enabling efficient energy management and intelligent system linkage.
If you are interested in our hybrid solar inverter, please contact the Xindun team for more product information!
