How Does Solar Panel to Battery to Inverter Work?

When choosing a solar power system, many customers often face a common dilemma when choosing an inverter: should they purchase it with a battery? Considering the power needs of most homes and businesses and their off grid environments, we generally recommend choosing a system with a battery. A complete and efficient solar power system requires more than just the inverter. The solar panel, battery, and inverter work together like a "golden pair," forming the complete chain from solar energy capture to stable power output. Working together, these three components efficiently utilize solar energy, avoiding energy waste while also meeting electricity needs during periods of low sunlight. Want to understand why a battery based system is preferred and how this system works? Xindun will explain the workings of solar panel, battery, and inverter below.

What is the solar panel?

The solar panel, also known as solar panel, is a device that directly converts solar energy into electricity. Its primary function is to utilize the solar effect of semiconductor materials to convert light energy into electricity, providing clean, renewable energy for various electrical devices. Solar panel primarily consist of multiple solar battery, typically made of semiconductor materials such as silicon (such as monocrystalline silicon and polycrystalline silicon). Monocrystalline silicon modules offer high efficiency and long lifespan, while polycrystalline silicon modules offer a more cost effective solution. These solar battery possess a unique electronic structure: when photons from sunlight strike the battery surface, they are absorbed by the semiconductor material, which in turn stimulates electrons within the material to break free from their atomic bonds, forming free electrons. Under the influence of the cell's internal electric field, these free electrons migrate in a fixed direction, generating a continuous direct current (DC).

The DC power generated by solar panel is the "energy source" for all subsequent links in the power system. Without solar panel converting sunlight into electricity, battery have no energy to store, inverter have no energy to convert, and the entire system would cease to function. Therefore, the conversion efficiency of solar panels directly determines the overall power generation capacity of the system. The higher the conversion efficiency, the more DC power generated under the same sunlight conditions, and the subsequent energy storage capacity of battery and inverter increases accordingly.

What is the battery?

Battery play a crucial role in solar power system, storing and releasing electrical energy, serving as the energy bridge between power generation and consumption. During abundant daylight hours, the DC power generated by solar panels not only powers the load but also stores excess energy in the battery. During periods of low sunlight, such as at night or on cloudy days, the batteries release this stored power, which is then converted to AC power by inverter to supply the load, ensuring 24-hour continuous power supply. Battery effectively address the intermittent nature of solar power generation, ensuring stable operation even in dark conditions. The type and capacity of batteries are crucial for different projects. Lithium battery, with their high energy density, long life, and high discharge efficiency, are suitable for commercial and industrial systems. Lead-acid battery, with their low initial investment and proven technology, are widely used in off grid projects. Choosing the right battery based on your budget and actual needs can achieve efficient energy storage and improve power supply stability.

What is the inverter?

In the solar panel to battery to inverter process, the inverter is the key link between energy storage and power consumption. Its core function is to resolve the "mismatch in energy forms" by converting the direct current (DC) stored in the battery into alternating current (AC) that meets the standards for device use. It is the core converter that transforms energy from "storage" to "usable."

Home appliances and industrial equipment in our daily lives all require alternating current (AC) power, which must adhere to fixed voltage and frequency standards. However, battery output low voltage DC power (such as 12V, 24V, or 48V) and cannot directly power these devices. The inverter primarily boosts the low voltage DC power output from the battery and converts it into high voltage AC power. For example, the DC power output from a 24V battery is converted by the inverter to standard 220V, 50Hz AC power, which can be directly connected to the household electrical system to meet the normal operation requirements of home appliances, achieving the crucial transformation from "storage" to "actual power consumption." Inverter not only convert DC power stored in battery into usable AC power, but also convert DC power generated by solar panel into AC power for loads. Choosing the right inverter determines the system's conversion efficiency and output stability, and also impacts the overall system's safety and service life.

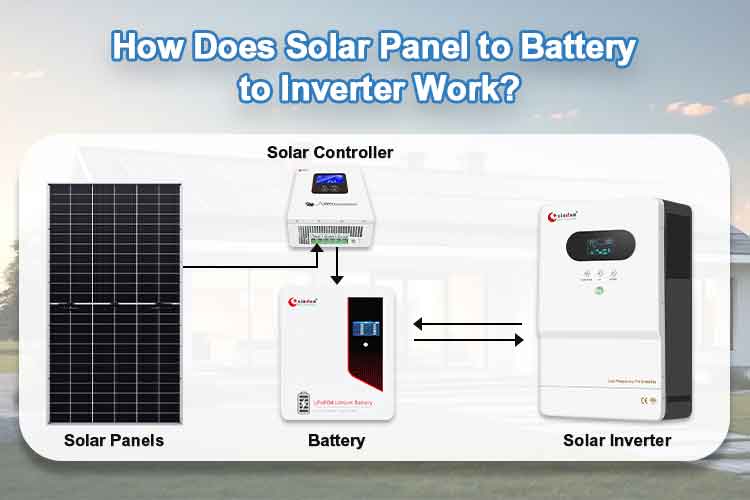

How does solar panel to battery to inverter work?

In a solar power system, solar panel, battery, and inverter are key components. Their operation isn't a simple one way transmission process; instead, they utilize intelligent control to achieve efficient energy distribution and dynamic management. The system is typically used in conjunction with solar controller. During the day, solar panel convert sunlight into direct current (DC). The system prioritizes this power for the load, meeting the immediate power needs of homes, businesses, or industrial equipment. When power generation exceeds load demand, excess energy is transferred to batteries for storage, ready for use at night or on cloudy days. The inverter plays a critical role in the overall system operation. It not only converts DC power into alternating current (AC) but also dynamically adjusts power flow based on load and battery status, ensuring stable and efficient operation. When solar panel, solar charge controller, battery, and inverters work together, they form a complete and intelligent solar power system.

This article analyzes the process of switching from solar panels to battery and inverter. We hope this will help users better understand solar systems and make informed decisions about purchasing solar components. As a professional manufacturer of solar panel, battery, inverter, solar controller, and solar system, Xindun consistently provides customers with high quality solar products and solutions to meet the global solar market's power needs.
