In some countries and regions, residential and commercial electricity use a dual voltage power supply standard. Markets like Venezuela, Mexico, and Brazil require 110V/120V for lighting and low power appliances, and 220V/240V to drive high power loads such as air conditioners, water pumps, and electric stoves. To meet the requirements of this dual voltage standard, split phase inverter can stably output 120V/240V or 110V/220V split phase voltage. A single system can cover loads of different voltage levels throughout the house, making it widely used in residential, farm, and small scale commercial solar system in dual voltage countries, and has become the mainstream solution in these markets.
In contrast, single phase inverter, with their single voltage output mode, cannot directly accommodate dual voltage environments. They often require additional step up/step down transformers, or even multiple inverter system, increasing equipment and installation costs, system complexity, and reducing long term operational stability and safety. Xindun Power will provide in depth look at the 10KW split phase inverter in the following article.

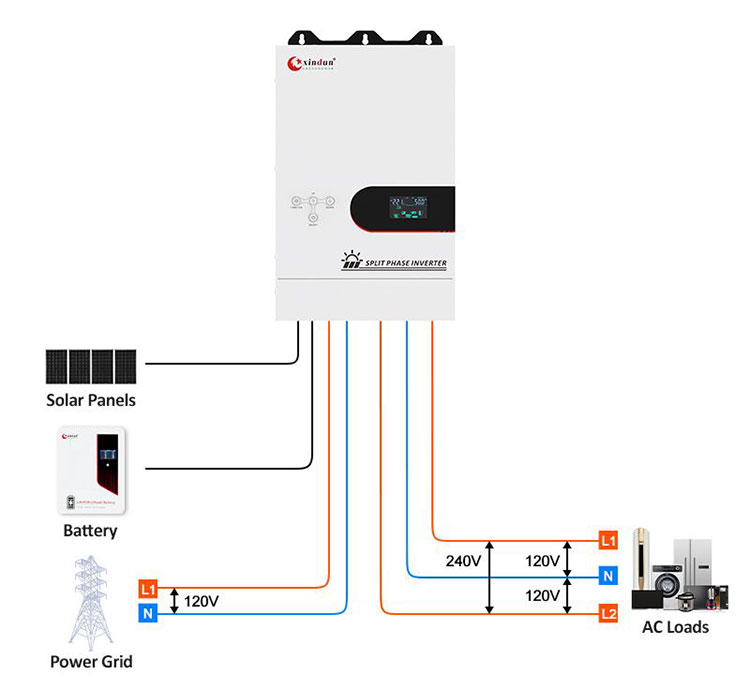

10KW split phase inverter has rated output power of 10 kilowatts. It primarily converts the direct current (DC) generated by solar panels/battery into alternating current (AC) usable by the load. Unlike typical single phase inverter, it doesn't simply output a single AC voltage. Instead, through internal circuit design, it simultaneously generates two 120V AC outputs, 180° out of phase, creating a standard 240V output between the two phases. For example, in typical 120V/240V system, split phase inverter provides two independent 120V phases. These two phases are grounded via a center tap, creating 240V voltage difference. This split phase output structure allows inverters to meet the needs of lighting and small appliances requiring lower voltages (e.g., 120V) as well as easily power larger equipment, such as washing machines, dryers, and air conditioners that require higher voltages (e.g., 240V).
In countries with dual voltage output, single phase inverter can only output one fixed voltage. When the system contains both low voltage loads and high voltage equipment, additional transformers or multiple inverters are required to achieve voltage matching. However, split phase inverter, by splitting the phase output, can provide two voltages simultaneously from single inverter, eliminating the need for additional step up or step down transformers. This not only reduces energy losses during conversion but also lowers the risk of system failure, resulting in simpler and more reliable overall power supply structure.
10KW split phase inverter has a wide load range, covering various electrical devices in residential and small commercial settings. Based on voltage requirements, it can be divided into two main categories:
120V/110V Low Voltage Loads: 10KW split phase inverter can easily handle everyday household power needs, such as lighting, TV, refrigerators, microwave ovens, computers, and other common small appliances. These loads typically have power output ranging from a few watts to several hundred watts, ensuring stable and continuous power supply to meet basic household and work needs.
240V/220V High Voltage Loads: These loads are mostly high power devices with higher voltage and power requirements, which are difficult for traditional single phase inverter to meet. A 10kW split phase inverter can easily handle these loads, such as: residential central air conditioning (1-2 horsepower), electric water heaters (4-6kW), washing machines, dryers, dishwashers, etc. Taking a common household 2-horsepower central air conditioner as example, its operating power is approximately 2-3KW, and the electric water heater's operating power is approximately 4-5KW. When both are running simultaneously, the total power is approximately 6-8KW, still within the 10KW rated power range. The inverter can drive it stably, so there's no need to worry about insufficient load capacity.

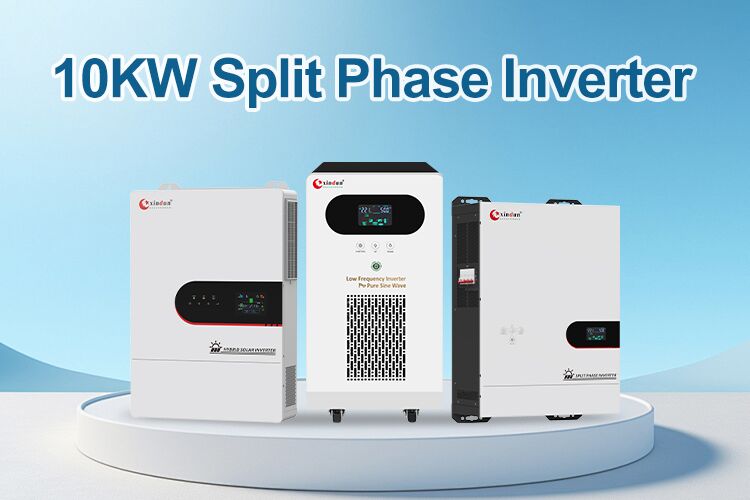

Here are 3 recommended Xindun Power 10KW split phase inverters:
Battery Voltage: DC48V
Input and Output: AC 100/105/110/120V
L1-N-L2（L1-L2：200/210/220/240VAC；L1-N/L2-N：100/105/110/120VAC）
Feature:
1. Supports split phase input and split phase output, and US standard single phase input and single phase output, allowing one device to adapt to multiple voltage systems;
2. Supports time of use charging and discharging settings, effectively reducing electricity costs when combined with peak valley pricing strategies;
3. Supports up to 6 units operating in parallel, flexibly expandable to single phase or three phase system to meet future power growth needs;
4. Employs high frequency inverter design for higher conversion efficiency, lower no load loss, and greater energy savings over long term operation;
5. Supports hybrid power supply from solar and mains, achieving stable power supply while optimizing energy usage structure;
6. Built in MPPT solar controller, supporting up to 500V PV input, improving solar energy utilization and simplifying component configuration;
7. Supports lithium battery activation and BMS communication, improving battery compatibility and system operational safety;
8. A single unit can directly power the load without batteries, reducing initial system investment costs;
9. Supports multiple external communication methods for convenient remote monitoring and system management;
This is the wiring diagram for the HU series split phase inverter:
Single Phase Parallel Working
Split Phase Parallel Working
Two Phase Split Phase Parallel Working
Three Phase Parallel Working
Battery Voltage: DC48V
Input and Output:
N-L1: 80VAC-133VAC(105VAC)/85VAC-138VAC(110VAC)
90VAC-143VAC(115VAC)/95VAC-148VAC(120VAC)
L1-N-L2
105VAC: (L1-L2: 160VAC~266VAC，L1-N/L2-N:80VAC~133VAC)
110VAC: (L1-L2: 170VAC~276VAC, L1-N/L2-N: 85VAC~138VAC)
115VAC: (L1-L2: 180VAC~286VAC，L1-N/L2-N: 90VAC~143VAC)
120VAC: (L1-L2: 190VAC~296VAC, L1-N/L2-N: 95VAC~148VAC)
N-L1:105VAC±2%/110VAC±2%/115VAC±2%/120VAC±2%
N-L2:105VAC+2%/110VAC+2%/115VAC+2%/120VAC±2%
LI-L2:210VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%
Feature:
1. Supports split phase input and split phase output, or split phase input and single phase input, flexibly adapting to different voltage standards and power environments;
2. Low frequency design, high inverter efficiency, pure sine wave output, suitable for various loads;
3. Supports lithium battery BMS communication, improving battery compatibility and operational safety;
4. Adopts brand new appearance design, with optional built in MPPT controller, resulting in more compact system structure;
5. Supports multiple operating mode settings to meet different application needs such as off grid and standby;
6. Adjustable mains charging current, allowing for flexible system configuration according to different battery capacities;
7. Wall mounted design, easy installation, saving space;
8. Can be connected to diesel or gasoline generators for continuous operation in unstable grid or harsh environments;
This is the wiring diagram for the LU series split phase inverter:
Single Phase System Working
Split Phase System Working
Battery Voltage: DC48/96/192V
Input and Output: AC 110/120/220/230/240V
Feature:
1. Adjustable AC charging current from 0–20A, allowing for greater flexibility in battery capacity and system configuration;
2. Offers both AC priority and inverter priority operating modes to adapt to different application scenarios;
3. Supports fault code display, providing a clear overview of equipment status and facilitating more efficient maintenance;
4. Compatible with diesel/gasoline generator input, ensuring continuous operation in harsh power supply environments;
5. Optional MPPT solar controller to improve solar energy utilization;
6. Low frequency design ensures stable operation and outputs high quality pure sine wave power;
7. Equipped with an RS485 communication interface, with an optional mobile app for remote monitoring and management.
This is the wiring diagram for the WF series split phase inverter:
Single Phase System Working
Split Phase System Working
The three models split phase inverters mentioned above are the most popular inverter types in the Americas market. As inverter manufacturer, Xindun Power offers single phase inverter, split phase inverter, and three phase inverter, with power ratings ranging from 300W to 160KW, flexibly meeting the voltage standards and project requirements of different countries and regions worldwide. Whether for residential users, businesses, or engineering projects, Xindun Power is committed to providing customers with stable, reliable, and highly adaptable power conversion solutions.
