Many wholesalers have reported to us that many customers want to purchase solar power system but are unsure about the appropriate converter power rating. Choosing undersized converter won't power high power appliances, significantly reducing the system's practicality; choosing an oversized converter will result in wasted costs and energy losses. The key to determining converter power is clearly defining your actual electricity needs. 5000 watt power converter is a common point of confusion for many customers. Today, Xindun Power will provide detailed analysis of 5000 watt power converter in the following article.
5000 Watt Power Converter refers to a device with a rated output power of 5000 watts that can provide a pure sine wave and a continuous, stable AC power conversion.
5000 watt is not just a theoretical number, it means that under continuous operation, the converter can stably support loads with total power not exceeding 5000 watt. This perfectly covers the core power needs of most households and small commercial settings. Our 5000 watt power converter also boasts strong instantaneous load capacity, easily handling the large current surges generated when a load starts up, ensuring smooth and safe start up.
5000 watt power converter's powerful output can easily handle a variety of medium and low power loads, comprehensively covering everything from daily household electricity use to outdoor work and small business operations. For example, a typical household load can stably support one 1 X 1.5HP air conditioner (approximately 1200–1800 watt), 1 X refrigerator (150–300 watt), 1 X microwave oven or rice cooker (800–1200 watt), and basic loads such as lighting, televisions, and routers (300–500 watt). The total operating power is typically kept between 3500–4500 watt, still within a safe operating range. Devices with motors or compressors, such as air conditioners and refrigerators, often generate 2–3 times the instantaneous power at startup. We recommend keeping the continuous load at around 70%–80% of the rated power to ensure the 5000 watt power converter remains stable and safe during long term operation
5000 watt power converter can form independent power supply system with solar panel，solar controller and battery, providing continuous power and ensuring the normal operation of loads in off grid environments. It is widely used in homes, small businesses, and other locations. 5000 watt power converter can typically meet the core power needs of daily household life, including lighting, television, air conditioning, and kitchen appliances. When the mains power is unstable or electricity prices are high, it can serve as backup power source, ensuring that the household can maintain normal life during power outages or rationing.
For small businesses, compared to high power converter, 5000 watt converter offers greater control over equipment investment, installation conditions, and system complexity, and can stably support the core power needs of most small businesses. For example, small shops, offices, clinics, or service outlets typically have their main loads concentrated on lighting systems, computers and office equipment, security monitoring, point of sale system, and some refrigeration or ventilation equipment. The power structure of these scenarios is highly compatible with the output capacity of 5000 watt power converter.
If you're unsure whether 5000 watt power converter is right for your project environment, the Xindun Power team can provide you with expert advice.
5000 watt power converter is not suitable for all loads. When purchasing solar power converter, you need to select converter with power rating that matches your actual load requirements and electricity usage habits. Based on different market demands, Xindun Power offers a variety of 5000 watt converters with different structures and functions.

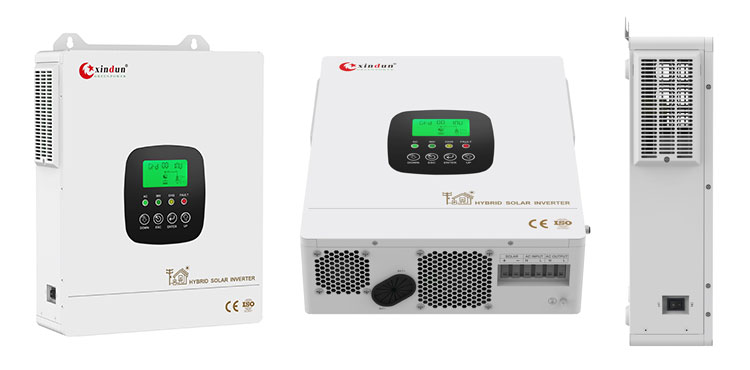

HFP Series 5000 Watt Power Converter
Battery Voltage: DC48V
Output: AC220V/230V/240V
Features:
1. Supports multiple operating modes, including off grid, on grid and hybrid modes, adapting to different power environment requirements.
2. Supports lithium battery BMS communication for real time battery status monitoring, improving system safety and reliability.
3. Built in MPPT solar controller, with PV input voltage as low as 40Vdc, efficiently utilizing solar power generation.
4. Bidirectional energy storage management function, flexibly controlling bidirectional energy flow, supporting simultaneous charging of the battery by photovoltaic and mains power.
5. High frequency design, pure sine wave stability, high inverter conversion efficiency.
6. Charging priority management function, rationally allocating charging sequence under different conditions to optimize battery life.
7. Provides configurable output priority function, allowing selection of mains, PV, or battery power supply according to actual needs.
8. Supports batteryless operation mode, directly utilizing PV and mains power to supply the load, reducing initial system investment costs.

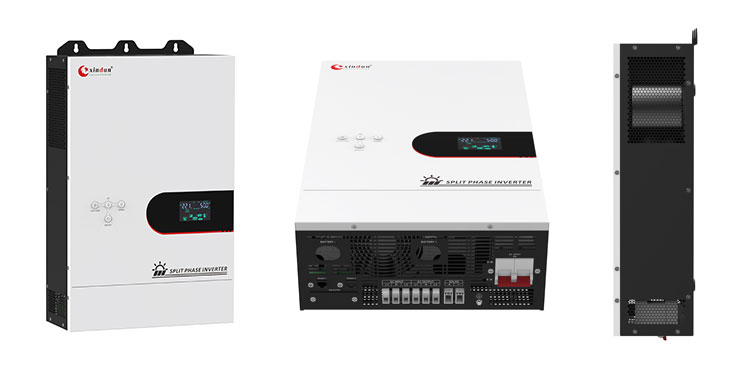

LU Series 5000 Watt Power Converter
Battery Voltage: DC48V
Output: N-L1: 80VAC-133VAC(105VAC)/85VAC-138VAC(110VAC)
90VAC-143VAC(115VAC)/95VAC-148VAC(120VAC)
L1-N-L2
105VAC: (L1-L2: 160VAC~266VAC，L1-N/L2-N:80VAC~133VAC)
110VAC: (L1-L2: 170VAC~276VAC, L1-N/L2-N: 85VAC~138VAC)
115VAC: (L1-L2: 180VAC~286VAC，L1-N/L2-N: 90VAC~143VAC)
120VAC: (L1-L2: 190VAC~296VAC, L1-N/L2-N: 95VAC~148VAC)
Feature:
1. Supports split phase input and split phase output, and can be set to split phase or single phase input mode to adapt to different grid standards and power demand.
2. Compatible with diesel or gasoline generators, maintaining continuous power supply even in complex or unstable power environments.
3. Optional built in MPPT solar controller for efficient solar charging.
4. Utilizes high frequency design, possessing strong load adaptability and outputting stable pure sine wave AC power to ensure safe equipment operation.
5. Adopts wall mounted structure design, facilitating easy installation, occupying minimal space, and suitable for various application scenarios.
6. Adjustable mains charging current, allowing for appropriate matching according to different battery capacities, enhancing system configuration flexibility.
7. Optional built in MPPT solar controller for efficient solar charging.

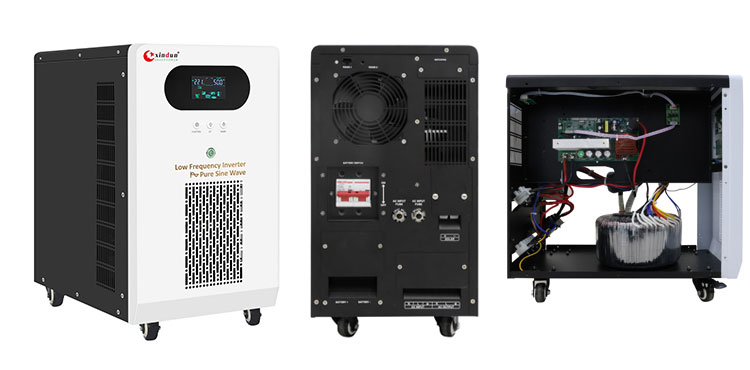

WF Series 5000 Watt Power Converter
Battery Voltage: DC48V/96V
Output: AC110V/120V/220V /230V/ 240V
Feature:
1. Offers two operating modes: mains priority or converter priority, enhancing the controllability of power consumption strategies.
2. Mains charging current is adjustable within the range of 0–20A, optimizing matching based on actual load and battery configuration.
3. Supports optional built in MPPT solar controller to improve solar energy utilization efficiency.
4. Adds fault code display and query functions to help users quickly determine operating status, improving maintenance and troubleshooting efficiency.
5. Supports RS485 communication interface and mobile APP (optional) for remote management and data viewing of equipment operation.
6. Compatible with diesel and gasoline generators, enabling stable operation in complex or extreme power conditions.

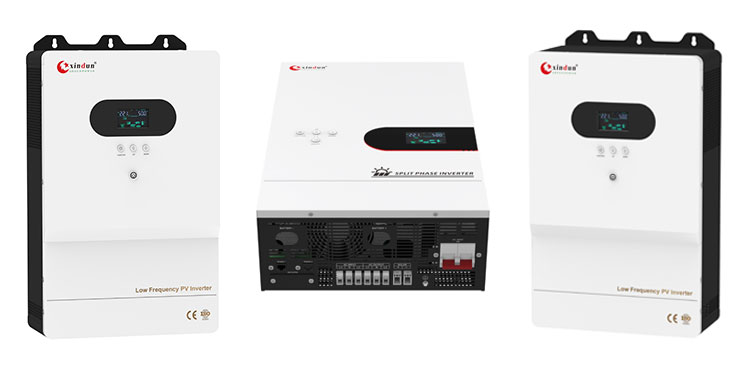

LF Series 5000 Watt Power Converter
Battery Voltage: DC48V
Output: AC110V/120V/220V /230V/ 240V
Feature:
1. Includes fault code lookup function, enabling users to quickly understand equipment operating conditions and perform maintenance diagnostics.
2. Supports flexible setting of mains charging current within the range of 0–30A, allowing selection of different operating modes according to actual needs and improving system adaptability.
3. Caters to both industrial and civilian application needs, adopting wall mounted structure design for flexible installation and convenient use.
4. Possesses strong instantaneous start up capability, with peak power reaching more than 3 times the rated power, while also having multiple automatic protection mechanisms to ensure long term stable operation.
5. Compatible with diesel or gasoline generator connections, ensuring continuous power supply even under unstable grid conditions or harsh environments.

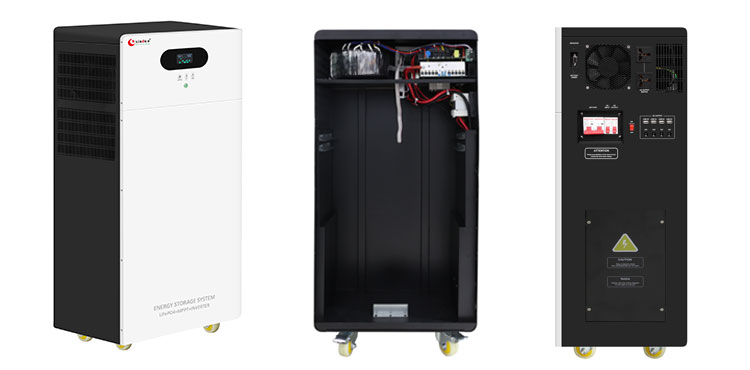

ESS-Li Series 5000 Watt Solar Power Generator
Battery Voltage: DC51.2V
Output: AC110V/120V/220V/230V/240V
Feature:
1. Utilizing all in one design, the MPPT solar controller, inverter, and lithium battery are combined into single device, simplifying the installation process and shortening deployment time.
2. The compact and aesthetically pleasing design balances practicality and style, featuring multiple output interfaces, including USB, DC ports, and AC sockets, to meet the charging needs of various loads.
3. Equipped with multiple safety protection mechanisms, including overvoltage, overtemperature, and overload protection, and supports communication with the battery BMS, comprehensively ensuring the safe operation of the system and battery.
4. Supports remote monitoring via WiFi or mobile App, enabling real time viewing and management of the system's operating status.
5. Can generate electricity via solar power, mains power, or diesel/gasoline generators, adapting to various power supply methods.|

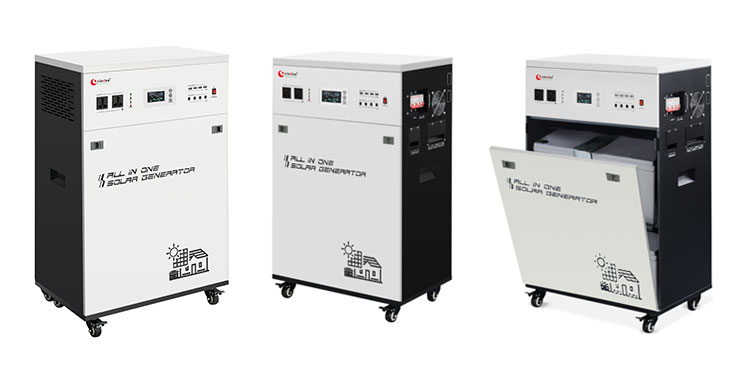

ESS Series 5000 Watt Solar Power Generator
Battery Voltage: DC48V
Output: AC110V/120V/220V/230V/240V
Feature:
1. Integrates inverter, lead-acid battery, and PWM solar controller into one unit, eliminating the need for complex installation.
2. Offers up to 3 times the instantaneous load capacity, easily handling motor type load starts and providing stronger overall load carrying performance.
3. Flexible setting of multiple operating modes: AC priority, ECO energy saving mode, and PV priority mode.
4. Provides multiple output interfaces, supporting AC output as well as DC 12V and DC 5V output to meet diverse power needs.
5. Built in AC bypass regulator and AC charger ensure stable power supply during AC power outages or load switching.
6. AC charging current supports adjustment within the 0–30A range, facilitating matching according to battery capacity and usage requirements.
The above six models are Xindun Power's best selling 5000 watt power converter in the global solar market. We hope this information helps more customers choose the right power converter. As a professional solar power converter manufacturer, Xindun Power offers power range of 300 watt-160 kilowatt to suit the needs of different power system and meet various off grid projects. We also provide OEM/ODM customization services based on local power environment requirements. If you are looking for solar power converter that meets your market's power needs, Xindun Power is your best supplier.
